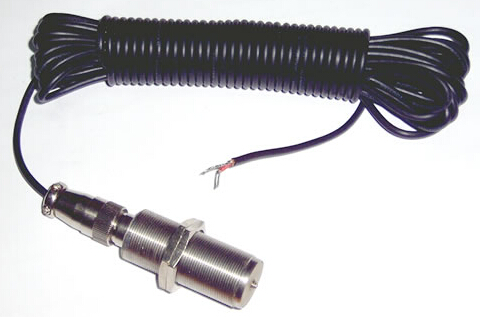

Productsmagnetic rotation speed sensor
- Model：SZMB-4
- Category：fixed magnetic tachometer
- origin：SHANGHAI
SHANGHAI AUTOMATION INSTRUMENTATION CO., LTD
SZMB-4 magnetic rotation speed sensor, used to connect through the shaft coupling and measured, when the shaft rotates, the rotation angle into electrical pulse signal, for counting the use of secondary devices.
Output pulses: 60 pulses / turn
Output signal amplitude: ≈ high voltage low voltage <1V
Speed range: 50 ~ 5000r/min
Power Supply: DC8 ~ 12V
Maximum length of input transmission lines: 50m
Use of time: continuous use, not to indiscriminately increase the use of lubricants
Working Environment: Temperature -10 ~ 40 ℃; the relative humidity ≤ 85% non-corrosive gases
Weight: 0.75 kg (excluding the output line weight)
