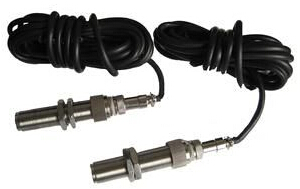

magnetoelectric rotation speed sensors

SZMB-9 magnetoelectric rotation speed sensors can counter the displacement into electrical signal for the count. Is small, robust and reliable, long life, without the advantages of power and lubricants, non-contact can measure a variety of magnetic materials such as: gears, impellers, with holes (or slots, screw) disc (or axis) speed and line speed.

Output waveform: sine wave is approximately (≥ 50r/min pm)

Output signal amplitude: 50r/min when ≥ 300mV

Iron core and measured sensor gear tooth tip clearance δ = 0.5mm

Teeth of the measured modulus m = 2, the number of teeth Z = 60

Signal electrical steel material

Amplitude, size, and speed is proportional to the top gear with the iron core and is inversely proportional to the size of the gap

Measuring range: 50 ~ 5000Hz

Time: Continuous use

Ambient temperature: -20 ~ 60 ℃

Output Type: X12K4P four core plugs

Dimension: φ16 × (L 32)

Weight: 285g
