magnetoelectric rotation speed sensor

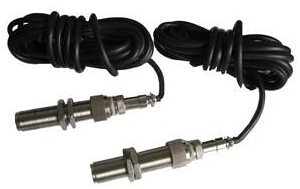

SZMB-9B magnetoelectric rotation speed sensor can counter the displacement into electrical signal for the count. Non-contact can measure a variety of magnetic materials such as: gears, impellers, with holes (or slots, screw) disc (or axis) of the speed and line speed.

Sensors with intrinsic safety, small size, solid and reliable, long life, no power and lubricants, etc, and all associated equipment Zener gate post and the secondary instrument package may constitute intrinsically safe explosion-proof speed detection system

Output waveform: sine wave is approximately (≥ 50r/min pm)

Output signal amplitude: 50r/min when ≥ 300mV

        Iron core and measured sensor gear tooth tip clearance δ = 0.5mm

        Modulus measured gear m = 2, the number of teeth Z = 60

        Signal electrical steel material

Amplitude, size, and speed is proportional to the top gear with the iron core and is inversely proportional to the size of the gap

Measuring range: 50 ~ 5000Hz

Time: Continuous use

Ambient temperature: -20 ~ +60 ℃

Output Type: X12K4P four core plugs

Dimension: φ16 × (L +32)

Weight: 285g

Explosion-proof mark: ib Ⅱ BT4

Associated with device models: LB865
