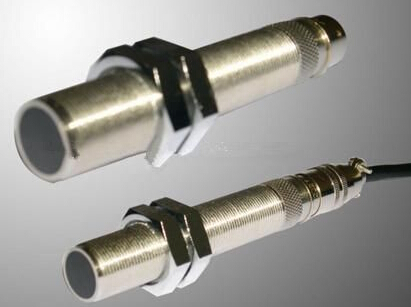

Productsexplosion-proof magnetoelectric rotation speed sensor
- Model:SZMB-5B
- Category:fixed magnetic tachometer
- origin:SHANGHAI
SHANGHAI AUTOMATION INSTRUMENTATION CO., LTD
SZMB-5B explosion-proof magnetoelectric rotation speed sensor, angular displacement can convert the signal for the counter is counting, non-contact can measure a variety of magnetic materials such as: gears, impellers, with holes (or slots, screw) disc (or axis) of the speed and line speed. Small in size, structure, reliable, long life and long transmission distance, the working environment temperature range and so on. And all associated equipment Zener gate (LB-867) after matching, and the second instrument may constitute "intrinsically safe explosion-proof magnetic speed measuring system", for a variety of explosion scene, the explosion logo ibIIBT4.
Operating frequency: 50 ~ 5000Hz
Power supply: 12 ± 0.5V (DC)
Checking gear modulus: m ≥ 1.5
Measuring distance: ≤ 0.5 mm
Output signal: waveform: Rectangular pulse;
Amplitude: 4.5 ± 0.5V high
Low ≤ 0.5V
Load resistance ≥ 10 KΩ
Working Environment: Temperature: -10 ~ +60 ℃
Relative humidity: <85%
Surrounding non-corrosive gases, no external magnetic field around
Dimensions: ø22 × 1 141 mm total length
Weight: 220g (excluding the output wire)
