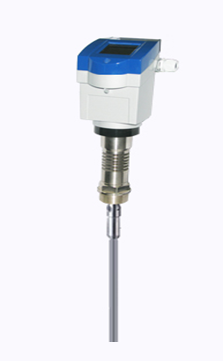

guided wave radar level meter

CDGW series guided wave radar level meter, uses advance micro-processor and EchoDiscovery echo processing technology which make it can be used in the complex working condition. There are many connection methods which make CDGW series guided wave radar level meter works in many conditions such as high-temperature media and high-pressure media. It is pulse working method and low transmits power. It can be installed in all kinds of metal and non-metal container. It is no harmful for human and environment.

application：Liquid and solid in complex condition

maximum range：cable：30m/rob：6m

accuracy：±10mm

process connection：G1½A、G2A、1½NPT

measure part material：Stainless steel 316L/PTFE

Steel cable/rob diameter：￠6mm、￠8mm/￠10mm

Process temperature：-40～150℃

Process pressure：-0.1～40bar

Signal output：two-wire 4～20mA/HART
