Current Location：Home > Products > Level Meter > Radar Level Meter > UL series
ProductsUL series

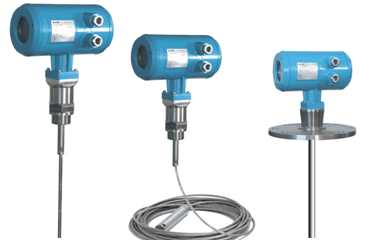

- Model：guided wave radar level meter
- Category：Radar Level Meter
- origin：SHANGHAI
SHANGHAI AUTOMATION INSTRUMENTATION CO., LTD
UL series guided wave radar level meter uses advance micro-processor and EchoDiscovery echo processing technology which make it can be used in the complex working condition. There are many connection methods which make ULS3X pulse radar level meter works in many conditions such as high-temperature media and high-pressure media. It is pulse working method and low transmits power. It can be install in all kinds of metal and non-metal container. It is no harmful for human and environment.
|
|
ULS31 |
ULS32 |
|
application |
Liquid and solid in complex condition |
Strong corrosive liquid |
|
Maximum range |
cable：30m/rob：6m |
6m |
|
accuracy |
±10mm |
±10mm |
|
Process connection |
GI 1/2A、G2A、1 1/2NPT |
PTFE flange |
|
Measure part material |
Stainless steel 316L/PTFE |
PTFE |
|
Steel cable/rob diameter |
Ф4mm、Ф6mm/Ф10mm |
Ф10mm |
|
Process temperature |
-40…+150℃ |
-40…+150℃ |
|
Process pressure |
-1.0…40bar- |
-1.0…16bar- |
|
Signal output |
Two-wire/four-wire4…20mA/HART |
Two-wire/four-wire 4…20mA/HART |
|
|
ULS33 |
ULS34 |
|
application |
Small dielectric constant liquid and solid |
Liquid, high temperature and high pressure working condition |
|
Maximum range |
6m |
cable：30m/rob：6m |
|
accuracy |
±10mm |
±10mm |
|
Process connection |
GI 1/2A、G2A |
GI 1/2A、G2A、1 1/2NPT |
|
Measure part material |
Stainless steel 316L/PTFE |
Stainless steel 316L/陶瓷 |
|
Steel cable/rob diameter |
Ф28mm |
Ф4mm、Ф6mm/Ф10mm |
|
Process temperature |
-40…+150℃ |
-40…+200℃ |
|
Process pressure |
-1.0…40bar- |
-1.0…40bar- |
|
Signal output |
Two-wire/four-wire 4…20mA/HART |
Two-wire/four-wire 4…20mA/HART |
|
|
ULS35 |
ULS36 |
|
application |
Liquid, high temperature and high pressure |
Small dielectric constant liquid and solid |
|
Maximum range |
cable：30m/rob：6m |
cable：30m/rob：6m |
|
accuracy |
±10mm |
±10mm |
|
Process connection |
GI 1/2A、G2A、1 1/2NPT |
GI 1/2A、G2A、1 1/2NPT |
|
Measure part material |
Stainless steel 316L/ceramic |
Stainless steel 316L/PTFE |
|
Steel cable/rob diameter |
Ф4mm、Ф6mm/Ф10mm |
Ф4mm、Ф8mm |
|
Process temperature |
-200…+400℃ |
-40…+150℃ |
|
Process pressure |
vacuum…400bar- |
-1.0…40bar- |
|
Signal output |
Two-wire/four-wire 4…20mA/HART |
Two-wire/four-wire 4…20mA/HART |
