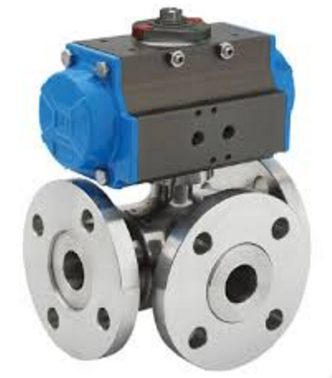

small pneumatic three-way ball valve

Model：ZSQRJ
Category：Pneumatic Valve
origin：SHANGHAI

SHANGHAI AUTOMATION INSTRUMENTATION CO., LTD

ZSQRJ small pneumatic three-way ball valve made up of ZGH pneumatic actuator and three-way ball valve, use special three-way four-phase sealing structure, stable sealing, reliable performance. Three-way ball valve spool: T-type and L-type. Long using life, large flow capacity, small resistance. T-type ball spool for shunt, L-type hole channel for distribution, action mode: single action and double action

Nominal diameter	15	20	25	32	40	50	65	80	100	125	150
Type
Nominal pressure	PN1.6、6.4mpa
Connection type	Flange connected，according to JB79-59 standard
Material of valve body	Cast steel, cast stainless steel
Suitable	900
Valve spool type	Normal temperature: -40℃-180℃; high temperature-40℃-450℃
Angle of valve spool	DKJ-II, III-type PSAUTCMATICN CMBH, LNAR-KOSO, unic-Z electric actuator
Actuator	0-1MA 4-20MA 15V DC
Pressure of supply air	≤±2.5% of full travel
