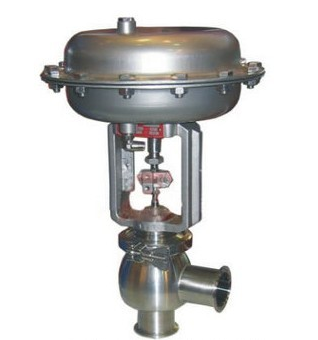

pneumatic sanitary adjusting valve

ZTRS(ZRS-10K) pneumatic sanitary adjusting valve used for the physical regulation of pressure, temperature, flow, like food, pharmacy, cosmetics, clean steam, alcohol, beverage, chemical and biological industries. Impact structure, convenient assembly, high regulation precision, especially with little loss of pressure drop, large flow, wide adjustable range, high flow precision, completely according to IEC534-1-1978 standard, leakage of valve according to ANSIB16.104 standard, adjusting valve equipped with different multi-spring actuator, large output force

Characteristics and features

Angle design, ensure self-discharging, standard e-polishing, smooth surface keep the clean, reduce the process downtime

Valve body type: angle-type casting ball-type(standard) three-way, linear, multi-way

Nominal diameter: Dn15、25、40、50、65、80、100mm

Nominal pressure: PN1.0MPa

Connection type: clamp, threaded, flanged

Materials: stainless steel 304SS、316SS、316LSS

Filler: EPDM rubber, PTFE
