pneumatic high-pressure angle valve

Model：ZJHS
Category：Pneumatic Valve
origin：SHANGHAI

SHANGHAI AUTOMATION INSTRUMENTATION CO., LTD

Click enlarge

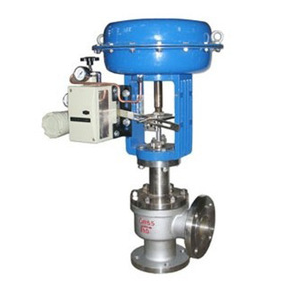

ZJHS pneumatic high-pressure angle valve

ZJHS-220、ZJHS-320 pneumatic high- pressure angle valve used for high pressure, high pressure difference, severe cavitation, erosion conditions. Use multi-level throttle type to share pressure difference, reduce cavitation, erosion and stream damage torsion, improved using life of adjusting valve. Valve body is rectangular shape, valve spool is single-guide structure, simple flow path, small resistance, especially suitable for regulating high viscosity, containing suspended solids and granular media, prevent coke, bonding, blocking

Nominal diameter (mm)	6				10					15					25
Diameter of valve seat (mm)	3	4		6	4	5	7	8	10	6	7	8	10	12	7	8	10	12	16	20
Flow characteristics Kv	0.04	0.1			0.1	0.4				0.4					1	1.6	2.5	4	6.3	8
		0.16		0.4	0.16		1	1.6	2.5	0.63	1	1.6	2.5	4
	0.063	0.25			0.25	0.63
Nominal diameter (mm)	32				40		50		65		80		100		125		150		200
Diameter of valve seat (mm)	16		20	30	20	38	30	50	38	65	50	80	65	100	65	125	100	150	125	200
Flow coefficient	6.3		8	16	8	25	16	40	25	63	40	100	63	160	100	250	160	400	250	600
Adjustable range	Kv <18 R=20：1；Kv >18 R=30：1
Nominal pressure	16、22、32MPa
Valve spool	Sleeve guide single-seat plunger valve spool
Flow characteristics	Straight line
Action mode	Air on、air off
Working temperature	General -40～230℃；heat sink 230～450℃，special order 450～600℃
Flange standard	According to JB/T2769-92 standard、according to ANSI、JIS、DIN standard
Actuator	ZHA/B multi-spring pneumatic diaphragm adjusting valve
Components	Positioner 、solenoid valve、air filter regulator、limit switch、feedback device of valve position、emergency device、handwheel body
