pneumatic diaphragm sleeve control valve

Model：ZMAM/ZMBM
Category：Pneumatic Valve
origin：SHANGHAI

SHANGHAI AUTOMATION INSTRUMENTATION CO., LTD

Click enlarge

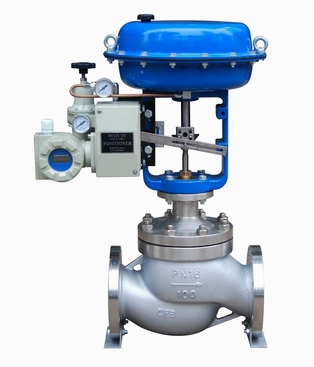

ZMAM/ZMBM pneumatic diaphragm sleeve control valve

Pneumatic diaphragm sleeve adjusting valve, is the general product of pneumatic actuators. Control the flow of media according to gas signal.

Structure principle

Made up of pneumatic diaphragm actuator and sleeve valve. Gas signal input into air room of diaphragm, drive putter to move, drive the valve plug components, valve plug move up and down in sleeve, change the flow section, flow of media changes.

Nominal diameter mm			20				25	40		50	65	80	100	150		200	250	300	350	400
Diameter of valve seat mm			10	12	15	20	25	32	40	50	65	80	100	125	150	200	250	300	Contact us
Rated flow coefficient Kv		Straight line	1.8	2.8	4.4	6.9	11	17.6	27.5	44	69	110	176	275	440	690	1000	1600
		Equal percentage	1.6	2.5	4	6.3	10	16	25	40	63	100	160	250	400	630	900	1440
Normal pressure MPa			0.6 1.6 4.0 6.4
Travel mm			10				16	25			40			60			100
Flow characteristics			Straight line、equal percentage、quick open
Media temperature℃			-15～200(normal temperature)、-40～+250、-40～+450(medium temperature)、-100～+200(low temperature)
Flange size			Cast iron flange size JB78、Cast steel flange size JB79
Flange type			According to JB78-59、JB79-59 standard，according to JB/79.1-94、JB/79.2-94、ANSI、JIS、DIN standard
Material of valve body	PN (MPa)	0.6,1.6	WCB(ZG230-450) CF3CF8 CF8M
		4.0,6.4	WCB(ZG230-450)、ZG1Cr18Ni9Ti、ZG0Cr18Ni12Mo2Ti CF8 CF8M
Valve body			Linear single-seat casting ball valve
Material of valve spool			1Cr18Ni9、0Cr18Ni12Mo2Ti CF8 CF8M
Upper cover			General (normal temperature )、heat sink(medium temperature)、low temperature
Components			Positioner hand wheel electric/gas convertor air filter regulator
Adjustable ratio R			30:1
Connector of air supply			M16×1.5
