pneumatic diaphragm cut-off valve

Model：ZJHC
Category：Pneumatic Valve
origin：SHANGHAI

SHANGHAI AUTOMATION INSTRUMENTATION CO., LTD

Click enlarge

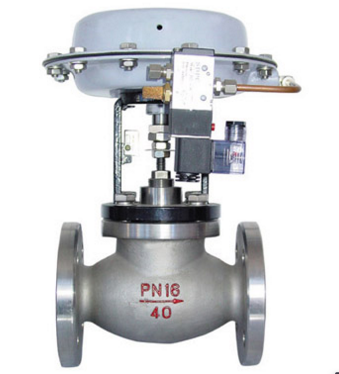

ZJHC pneumatic diaphragm cut-off valve

ZJHC pneumatic diaphragm cut-off valve is the improved product based on small pneumatic diaphragm single-seat adjusting valve, small size and light weight, leakage according to national standard VI level. Receive signal from regulation instrument, close or open valve, regulating pressure, temperature, flow and liquid and other processing parameters of regulation system, used in chemical, petroleum, power station, light industry and other departments for cutting media

Structure principle

ZJHC pneumatic diaphragm cut-off valve, made up of ZH（A/B） pneumatic diaphragm actuator and VJC cut-off valve

Principle: when no input signal, spring first provide force, make valve spool be at closed position(air on) or open position(air off). When pneumatic operation pressure input into diaphragm room, diaphragm produce a thrust, make putter moves, valve stem connected to putter through slotted nut, putter drive valve spool to move, make valve spool be at open position(air on) or closed position(air off), then can open or close valve

Features: sealing surface of valve spool made up of PTFE and metal. Use PTFE to sealed, metal to limit, reliable sealing. ZJHC pneumatic diaphragm cut-off valve with two action types: air off and air on

Nominal diameter DN（mm）			20		25	40		50	65	80	100	150		200
Diameter of valve seat DN（mm）			15	20		32	40					125	150
Rated flow coefficient KV			4.4	6.9	1	17.6	27.5	44	69	110	176	275	400	630
Nominal pressure PN（MPａ）			1.6；4.0；6.4
Model of actuator			ZM（A/B）-22			ZM（A/B）-23			ZM（A/B）-34			ZM（A/B）-45
Rated travel （mm）			16			25			40			60
Active area of diaphragm（㎝2）			350						560			900
Suitable temperature（℃）			-20～+200
Signal pressure （KPａ）			20～100；40～200；80～240
Dimension （mm）	ΦA		285						360			470
	L	PN1.6	181		184	222		254	276	298	352	451		600
		PN4.0	194		197	235		267	292	317	368	473		600
		PN6.4	206		210	251		286	311	337	394	508		650
	H		398		410	455		457	610	622	640	870		890
	H1	PN1.6	52		57	75		82	92	100	110	142		170
		PN4.0									117	150		187
		PN6.4	65		70	85		90	102	107	125	172		207
Weight （㎏）	PN1.6		19		20	26		30	47	55	65	156		224
	PN4.0 ～PN6.4		23		24	35		40	66	78	99	210		284
