frequency-current converter

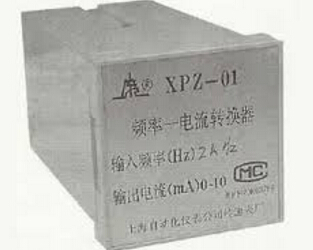

XPZ-01, 02A frequency-current converter is part of automated instruments to detect a cell, and the corresponding speed sensor package can be sine wave, square wave pulse signal linearly into a DC signal (XPZ-01 0 ~ 10 mA, XPZ-01A 4 ~ 20 mA) to achieve automatic adjustment of the speed measurement and is widely used for motor monitoring, regulating speed stability of the system, the engine speed control and so on.

□ Main Specifications

Input signal: sine wave, square wave

Increase value: 0.3 ~ 10V RMS

Frequency range: 0 ~ 50 - 500 Hz

0 ~ 100 - 1000 Hz

0 ~ 200 - 2000 Hz

0 ~ 300 - 3000 Hz

0 ~ 400 - 4000 Hz

0 ~ 500 - 5000 Hz

0 ~ 600 - 6000 Hz

0 ~ 1000 - 10000 Hz

Input impedance: ≥ 20KΩ

Output current: XPZ-0: 0 ~ 10 mA.DC

XPZ-01A: 4 ~ 20 mA.DC

Load Resistance: 0 ~ 500Ω

Basic error: ± 0.5%

Working conditions: Temperature 0 ~ 45 ℃

Relative humidity: ≤ 85%

Ambient air should not be corrosive gases

Power consumption: ≤ 5VA

Power supply: 220V 50 Hz

Dimensions: 72 (W) × 72 (high) × 144 (D) mm

Hole Size: 68 × 68

Weight: about 500 g
