frequency current converter

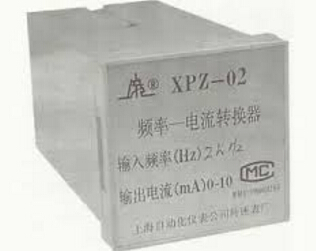

XPZ-02 frequency current converter according to the frequency components can be converted into a linear 4 ~ 20mA constant current. Change its internal use of a dedicated chip, an increase in isolation between input and output, with closed-loop amplifier and FET composed of V/I conversion, and on the use of resistors, capacitors, a rigorous screening, so have a good constant flow characteristics, conversion accuracy is 0.2. It SZMB-5T magnetic speed sensors constitute the nuclear power plant cooling pump speed detection device.

Input signal: waveform: sine wave

                       Amplitude: 0.2 ~ 20Vp-p

Full scale frequency range: 0 ~ 930Hz

Input impedance: ≥ 20 KΩ

Output Current: (4 ~ 20) mA

Load Resistance: (0 ~ 500) Ω

Power supply: 220V 50Hz

Power consumption: ≤ 5VA

Accuracy: 0.2

Ambient temperature: (0 ~ 70) ℃
