Current Location：Home > Products > Tachometer > fixed magnetic tachometer > Marine magnetic tachometer
ProductsMarine magnetic tachometer
- Model：CZ-800
- Category：fixed magnetic tachometer
- origin：SHANGHAI
SHANGHAI AUTOMATION INSTRUMENTATION CO., LTD

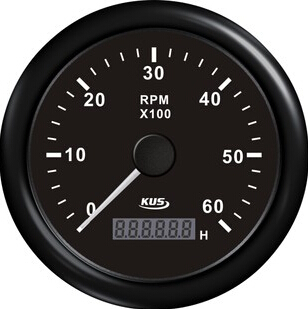

CZ-800 Marine magnetic tachometer
The instrument mainly used to measure the engine speed, also suitable for measuring other types of motorcycles and engine speed.
Use conditions: ambient temperature 0 ~ 60 ℃, relative humidity ≤ 85%.
Basic error: When the ambient temperature is 20 ± 2 ℃, the speed table on the basic error of measurement limit of ± 1.5%.
Temperature: 10 ℃ when the temperature of each change, the indicated value of additional error is less than the absolute basic error.
Backlash: tachometer shows the value of hysteresis does not exceed the absolute value of the fundamental error.
Accessories: Each bracelet comes with a flexible shaft, flexible shaft length sub 230mm, 275mm, 850mm three kinds
Specifications
|
Speed r/min |
Ratio |
|
150～800 |
1:1 |
|
100～1000 |
1:1 |
|
200～2000 |
1:2 |
