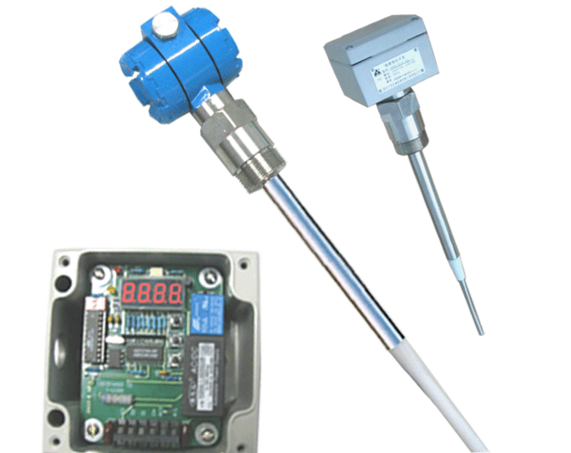

capacitance level controller

Model：RF-9000 series
Category：Level Controller
origin：SHANGHAI

SHANGHAI AUTOMATION INSTRUMENTATION CO., LTD

RF-9000，9200 series capacitance level controller uses advanced Ping Decatur company technology. It is an advanced controller at the moment. It can avoid the effection of adhesion layer so it can measure all the material such as liquid, solid conductive media and non-conductive media as well as corrosive media.

RF series includes integrated type and separated type. it also can be divided into ordinary type and explosion-proof type.

Power voltage：9000 series：220VAC±10％　　50Hz

9200series：24VDC

Power consumption：3W

Output relay：1A，220V　AC resistive load or 5A，28V　DC resistive load

alarm：Upper limit or lower limit

ambient temperature：－40～＋70℃

sensitivity：9000 series：1，4,10pF

9200 series：1，1.5，2，3，14，15pF

Delay time：9000 series：1，3，6s；

9200 series：1，2，4，7s

Explosion-proof grade：dia Ⅱ　BT5□

RF－9 □ 0 0 □ □

9—series number

□

0—probe type

0 —enclosure level

□ power voltage

□ structure form

1）

9000series

2）

9200series

1）short probe

2）plate probe

4）food probe

5）standard probe

7）standard probe for insulated tube

G）ordinary enclosure

X)explosion-proof enclosure

dia Ⅱ　BT5

2）220V　AC

A）integrated type；

B）integrated type，Roots extended；

C）integrated type、top extended，rigidity connection；

D）integrated type、top extended，flexible connection；

E）separated type；

F）separated type，Roots extended；

G）separated type，top extended，rigidity connection；

H）separated type，top extended，flexible connection；
