Current Location:Home > Products > Level Meter > Level Controller > float magnetic liquid level controller
Productsfloat magnetic liquid level controller
- Model:UQK-61 series
- Category:Level Controller
- origin:SHANGHAI
SHANGHAI AUTOMATION INSTRUMENTATION CO., LTD

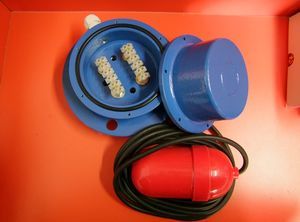

UQK-61 series float magnetic liquid level controller
Output signal: JAG-5H reed switch contact output HYR2016
Contact type: normal open or closed
Contact volume: 220VAC 1A,220VDC 1A,Nuclear use:200VAC 0.5A
Contact life: 5×104
Environment temperature:0~55℃,0~80℃(nuclear use)
Model |
Switch |
Measuring range |
Notes |
UQK-611 |
Single-point |
0.3~4m |
If the clamping length is too long, then not suitable for fields with many drift material |
UQK-612 |
Double-point |
According to clamping position of float |
|
UQK-613 |
Three-point |
||
UQK-614 |
Four-point |
,
