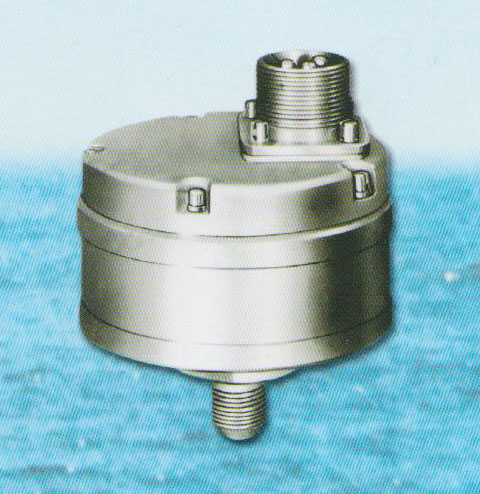

Productsmarine diaphragm pressure controller
- Model：YPK-02-C
- Category：pressure switch
- origin：SHANGHAI
SHANGHAI AUTOMATION INSTRUMENTATION CO., LTD
YPK-02-C marine diaphragm pressure controller can be used as a signal device when the non-corrosive gas or liquid pressure achieves a maximum or minimum value. It also can be used as the circuit contact switch for pressure regulator.
The controller is small, light and suitable for airplane, ship and cars. It can regulate pressure and can be installed on the pipeline on field.
Connector thread：M12×1、M14×1.5
Contact power：24VDC
Contact power：10W
Ambient temperature：-10℃~+55℃
RH：≤95%
weight：0.4kg（Including plug attachment）
