electric flange butterfly valve

Model：D941X
Category：Electric Valve
origin：SHANGHAI

SHANGHAI AUTOMATION INSTRUMENTATION CO., LTD

Click enlarge

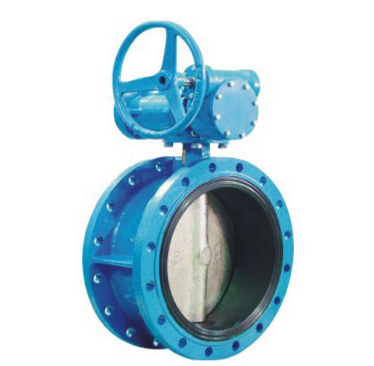

D941X electric flange butterfly valve

This product made up of butterfly valve of rubber sealing and carbon steel or stainless steel valve board、valve stem. Used in pipes of textile, paper, food, pharmaceutical, chemical, petroleum, electricity for adjusting flow and cutting off media

Main features:

1、 modern design、reasonable、special structure、light weight、 quick open and close

2、 small torque, convenient operation

3、 installed at any position, convenient maintenance

4、 sealing component can be changed, reach two-way sealing no leakage

5、 Anti-aging、anti-corrosion, long using life

Nominal diameter	DN（mm）	50～1200
Nominal pressure	PN（MPa）	0.6	1.0	1.6
Test pressure	Strength test	0.9	1.5	2.4
	Sealing test	0.66	1.1	1.76
	Gas sealing test	0.6	0.6	0.6
Suitable media	Air 、water、sewage、steam、gas、oil
Drive mode	Manual、worm drive、gas transmission、electric transmission。
