pneumatic single-seat control valve

Model：47-21100
Category：Pneumatic Valve
origin：SHANGHAI

SHANGHAI AUTOMATION INSTRUMENTATION CO., LTD

Click enlarge

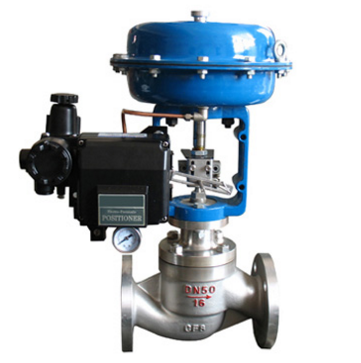

47-21100 pneumatic single-seat control valve

47/48-21000 series pneumatic single-seat adjusting valve, made up of ∑F actuator and 21000 series single-seat valve. ∑F actuator made up of general spring diaphragm actuator and power amplification system, use lever enlarge principle. Make the output force of actuator larger 2.6~5.2 times, 21000 series single-seat valve use top-guide structure, ensure stable operation of valve spool. Almost suitable for controlling all kinds of fluids

Main features:

1、 contain all kinds of valve spools, quick switch of valve spool, low capacity of valve spool, soft sealing of valve spool, low noise and anti-corrosive valve spool, widely used

2、 use top-guide structure, large guide area, good stability

3、 small leakage

4、 equipped with ∑F actuator, can receive high pressure difference

5、 sealing surface of valve spool, valve seat use cobalt chromium tungsten carbide hard alloy, improved using life

enterprise standard code of this product: Q/YXBM635

specifications

Pressure level Diameter (inch)	150	300	600	900	1500	2500
3/4	○	○	○	---	---	---
1	○	○	○	○	○	○
1 1/2	○	○	○	○	○	○
2	○	○	○	○	○	○
3	○	○	○	○	○	○
4	○	○	○	○	○	○
6	○	○	○	○	○	○

3. connection type

Diameter （inch）	Pressure level ANSI Class
Diameter （inch）	150	300	600	900、1500	2500
3/4	□●	□●	□△●	---	---
1、1 1/2	□●	□●	□△●	□●	□●
2	□●	□●	□△●	□●	●
3、4、6	□■	□■	□■	□■	■

●socket welded △welded connection □flange ■ wafer welded

Notes ：flange connection standard according to ANSI B16.5-1981；socket welded、welded connection standard according to ANSI B16.11-1980；wafer welded standard according to ANSI B16.25-1979
