rotation speed digital displayer

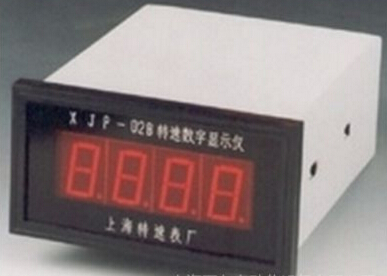

XJP-02B rotation speed digital displayer, is XJP-02A upgrade product, which uses a new chip technology, replace the original digital circuitry, and enhanced product reliability. And increase the parameter setting function, expand the product scope. The display instrument with proximity switches, Hall, optical, magnetic and other types of speed sensor package, used to measure speed, velocity and angular velocity, can be complementary with the flow sensor to detect flow, widely used in chemical industry, metallurgy, energy , light industry, textile, electronics, machinery, automobile and other industries.

Main Specifications

Speed Accuracy: 6 ~ 9999 r / min

Display range: 0.001 to 9999. (Decimal point can be arbitrarily set)

Accuracy: 0.02%

Input signal frequency: 0.5 Hz ~ 10kHz

Input signal amplitude: sine 300mA ~ 12V

0.5V ~ 12V square wave

Factor setting range: 0.001 to 9999.

Power supply: 220V AC.50 Hz

Use environment: Temperature 5 ~ 40 ℃ Relative humidity ≤ 85%

Hole Size: 132 × 67 mm

Dimensions: 140 × 75 × 172 mm

Weight: less than 1.0 kg
