handheld centrifugal tachometer

Model：LZ-30, 45, 60
Category：handheld centrifugal tachometer
origin：SHANGHAI

SHANGHAI AUTOMATION INSTRUMENTATION CO., LTD

Click enlarge

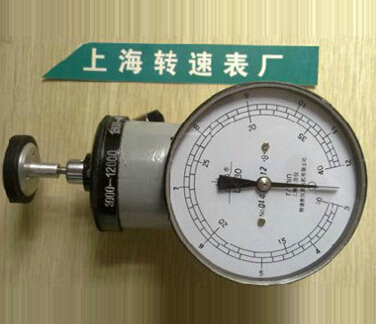

LZ-30, 45, 60 handheld centrifugal tachometer

Depending on the speed range, the handheld centrifuge tachometer with LZ-30, LZ-45, LZ-60 of the three types, mainly all kinds of machinery and equipment to measure the speed and line speed. The main instrument used to measure the speed of all kinds of machinery and equipment。

Conditions of Use: tachometer in an ambient temperature of -20 ~ 45 ℃ within the scope of work.

Basic error: tachometer at the temperature of 20 ± 2 ℃ environment, the basic error of measurement of the upper limit of ± 1%.

Temperature effect: when the temperature changes from 20 ± 2 ℃ to -20 ~ 45 ℃, the temperature tachometer additional error not exceeding the absolute value of the basic error limit.

Model specifications

● Speed r / min

Range	Model and measuring range
Range	LZ-30	LZ-45	LZ-60
I	30～120	45～180	60～240
II	100～400	150～600	200～800
III	300～1200	450～1800	600～2400
Ⅳ	1000～4000	1500～6000	2000～8000
Ⅴ	3000～12000	4500～18000	6000～24000

● Line Speed m / min

Range	Model and measuring range
Range	LZ-30	LZ-45	LZ-60
I	3～12	4.5～18	6～24
II	10～40	15～60	20～80
III	30～120	45～180	60～240
Ⅳ	100～400	150～600	200～800
Ⅴ	300～1200	450～1800	600～2400
