fixed-value controller

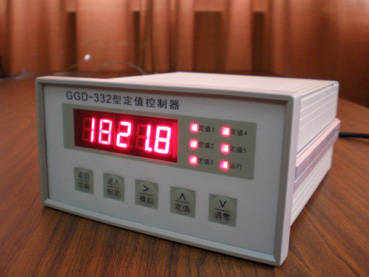

GGD-332 fixed-value controller

Product Introduction

Efficient A / D conversion port

Results adjustment and setting of long-term power to maintain

Meter optional RS-485 communication interface, remote data transmission was weighing function

Suitable for weighing display, position control, weighing signal transmission (analog transmitter or digital transmission) and other occasions

Technical Parameters

Sensor excitation power supply: 10V, 200MA

Sensor input signal range: 0 ~ 30mV

A / D sub-degree: 65,000 words

Sensitivity: 2000 words / m V

Nonlinear: 0.01% F.S

Sampling rate: 80 times / sec.

Output signal: 4 ~ 20MA

Positioning control switch outputs: normally open, AC220V, 0.5A

Working environment: Temperature 0 ℃ ~ + 40 ℃

Power supply: 220V 50Hz, 5W

Dimensions: 160 × 85 × 180㎜

Hole size: 150 × 75 mm

Weight: 1.5KG
