Current Location：Home > Products > Weighing Meter > Weighing Sensor > resistance strain load sensor
Productsresistance strain load sensor
- Model：BHR-45
- Category：Weighing Sensor
- origin：SHANGHAI
SHANGHAI AUTOMATION INSTRUMENTATION CO., LTD

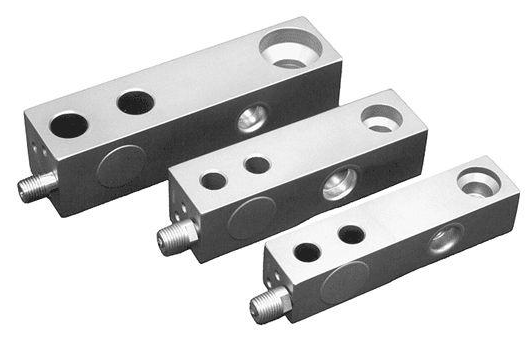

BHR-45 type resistance strain load sensor
Features
Izod , sealed type
Technical Parameters
Sensitivity: is 2mV / V
Nonlinear : ± 0.1% P.O.
Hysteresis error : ± 0.1% P.O.
Temperature compensation range : -10 ℃ ~ + 40 ℃
Temperature Range -20 ℃ ~ + 100 ℃
Safety overload : 50% R.L.
Excitation voltage : 10V Recommended ~12V (AC or DC) up to 20V
Input Impedance : 420 ± 40
Output Impedance : 350 ± 5
Specifications : 1T, 2T, 3T, 5T
