ProductsStatic Resistance Strain Meter
- Model:MYJ-1
- Category:Static Resistance Strain Meter
- origin:SHANGHAI
SHANGHAI AUTOMATION INSTRUMENTATION CO., LTD

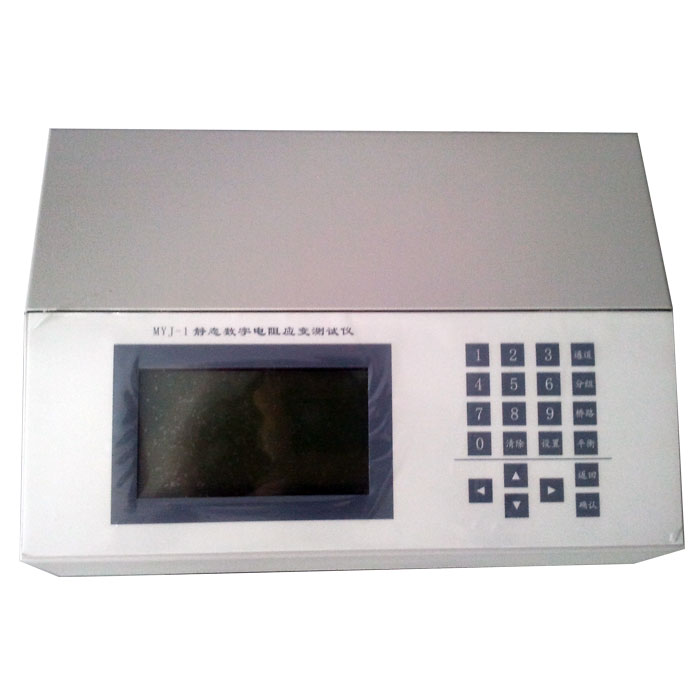

MYJ-1 Static Resistance Strain Meter
Use the LCD screen, can display real-time data 12 measuring points
? sampling rate data channel for each measuring point : 1Hz
? can be connected to all forms of resistance strain force , weight , torque, pressure sensors , etc.
? Each channel can be independently measuring point quarter-bridge , 1 / 2 -bridge , full-bridge test
? use each channel independently ADC designed to reduce the impact of changes during channel switching contact resistance
? Each channel can be independently automatic presetting balance , sensitivity parameters set
? expandable up to 48 measuring points channels
? Standard configuration: Ethernet interface (optical optional)
? Optional : RS-232C or RS485 communication interface
? AC220V ± 10%, 50 ± 0.5Hz
? DC5V
? Desktop Desktop : 330 (L ) × 228 ( width ) × 105 ( H)
