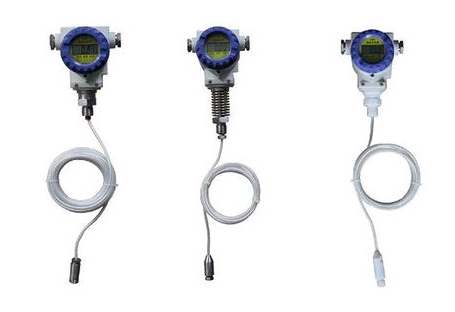

capacitance level meter

Model：UYZ-50 series
Category：Capacitance Level Meter
origin：SHANGHAI

SHANGHAI AUTOMATION INSTRUMENTATION CO., LTD

UYZ-50 series capacitance level meter is used to measure and indicate the level of tank, container conductive, non-conductive medium and powder. It outputs 0～10mA and can connect with current meter or DDZ－Ⅱ display instrument. if the circuit need to contact ground, you need equip isolator to match with the computer input terminal.

accuracy：non-explosion-proof ±1％

explosion-proof type ±1.5％

measure range：0.5，1.0，1.5，2.0，2.5，3.0m（UYZ－561B measure range 3.0，4.0，6.0，10m）。

load resistance：1.5kΩ

output signal：0～10mADC

power supply：220VAC（+10%/-15%）50Hz

media pressure：2.5Mpa

working condition：

sensor temperature: －40～＋85℃，RH: 10～95%

display instrument temperature:0～45℃，RH: 10～90%

alarm setting error：±2.5％

alarm setting range：0～100%

alarm contact capacity：220VAC　3A

Explosion-proof barrier model：DFA－3100 zener safety barrier

Explosion-proof mark：iaⅡCT6

UYZ－5　□　□　□　□

5series code

□electrode type

□ media temperature range

□ migration

□explosion-proof level

1）insulation type

2）Bare pole coaxial type

3）Bare pole type

4）coaxial insulating type

5）separate type

6）

Insulating Rope type

1）standard：－40～＋85℃

2）high-temperature：85～200℃

3）low-temperature：Ⅰ－100～－40℃

4）low-temperature：Ⅱ－156～－100℃

5）low-temperature：Ⅲ－200～－156℃

A）micro-capacitance

6～50pF

B)medium capacitance 30～1300pF
